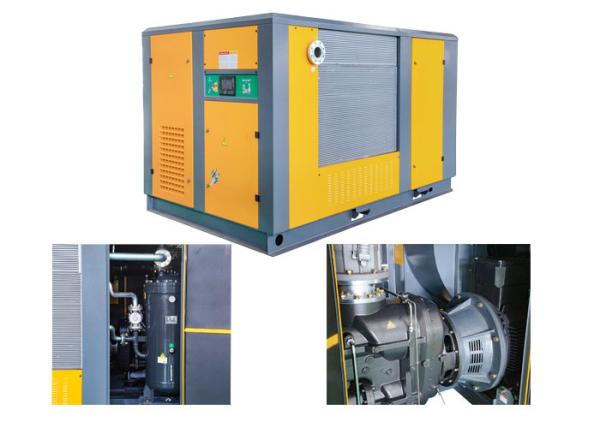

90kw 25bar Oil Injected High Pressure Customized Screw Air Compressor Two-Stage
GooDSeaA 2-stage Oil-injected rotary screw air compressors provide a reliable air supply of up to 20-30bar for high-pressure applications in the toughest working conditions, for example Bottle blowing (PET), Pharmaceutical industry, Food industry, Rubber tire manufacturing, Hydropower, Well drilling, Military, Biological and Chemical industry and many more applications.
Technical Data
| High Pressure Screw Air Compressor |
| Model | SE90W-25 | Note |
| Free air delivery (m3/min) | 8.5 | 300cfm |
| Max working pressure (bar) | 25 | 2.5Mpa |
| Power (kW) | 90 | 120hp |
| Voltage (V/P/Hz) | 380V/3P/50Hz | Voltage can be customized |
| Noise level dB(A) | 78 | |
| Cooling method | Water cooling | air cooling is optional |
| Drive method | Coupling | |
| Motor protection | IP55,F | |
| Suction air temperature (℃) | ≦50 | |
| Outlet temperature (℃) | Ambient Tem. + 8~10℃ | |
| Compressed air control method | Automatic(0-100%) | |
| Control method | PLC Intelligent | English |
| Oil content | 1~3ppm | |
| Connection (mm) | DN 40 | |
| Dimensions (L×W×H) mm | 2466*1900*1918 | |
| Weight (Kg) | 2750 | |
Features & Benefits
*high efficiency motor coupled to air end via non-lubricated, flexible coupling.
Flange-mounted for positive alignment;
*Heavy-duty inlet air filter
Two-stage, Oil-injected
Inside safety element
*Air-fluid separation
ASME psi rated tank
ASME pressure relief valve
Pleated air-fluid separator element for lower initial pressure drop
*Dependable, high-performance two-stage air end for maximum power savings.
*Cooling
Air-cooled units use mounted and piped aftercooler with quiet fan
Water-cooled units feature an air-in-shell, water-in-tube aftercooler design
*Intelligent Touch Screen Controller.
Easy pressure adjustment
Capacity modulation range 100 to 40%
Differential pressure indicator
More Models
| MODEL | POWER | AIR FLOW m3/min | PRESSSURE bar | OUTLET CONNECTION | WEIGHT kg | DIMENSION L*W*H mm |
| kw | hp |
| SE90W-20 SE90W-25 | 90 | 120 | 9.2 8.5 | 20 25 | DN 40 | 2750 | 2466*1900*1918 |
| SE110W-20 SE110W-25 | 110 | 150 | 11.6 9.7 | 20 25 | DN 40 | 2900 | 2466*1900*1918 |
| SE132W-20 SE132W-25 SE132W-30 | 132 | 180 | 13.0 11.8 10.5 | 20 25 30 | DN 50 | 3200 | 2466*1900*1918 |
| SE160W-20 | 160 | 220 | 15.5 | 25 | DN 50 | 3850 | 2850*1950*1950 |
| SE200W-20 SE200W-25 | 200 | 270 | 21.0 18.8 | 20 25 | DN 65 | 4200 | 2980*2100*1950 |
| SE250W-20 SE250W-25 | 250 | 340 | 25.0 22.0 | 20 25 | DN 65 | 4500 | 3250*2250*2050 |
Note: the above listed are of our standard models. For different needs, the special design service is available. Welcome to pre-sales technical consultation at any time.
GooDSeaA Workshop

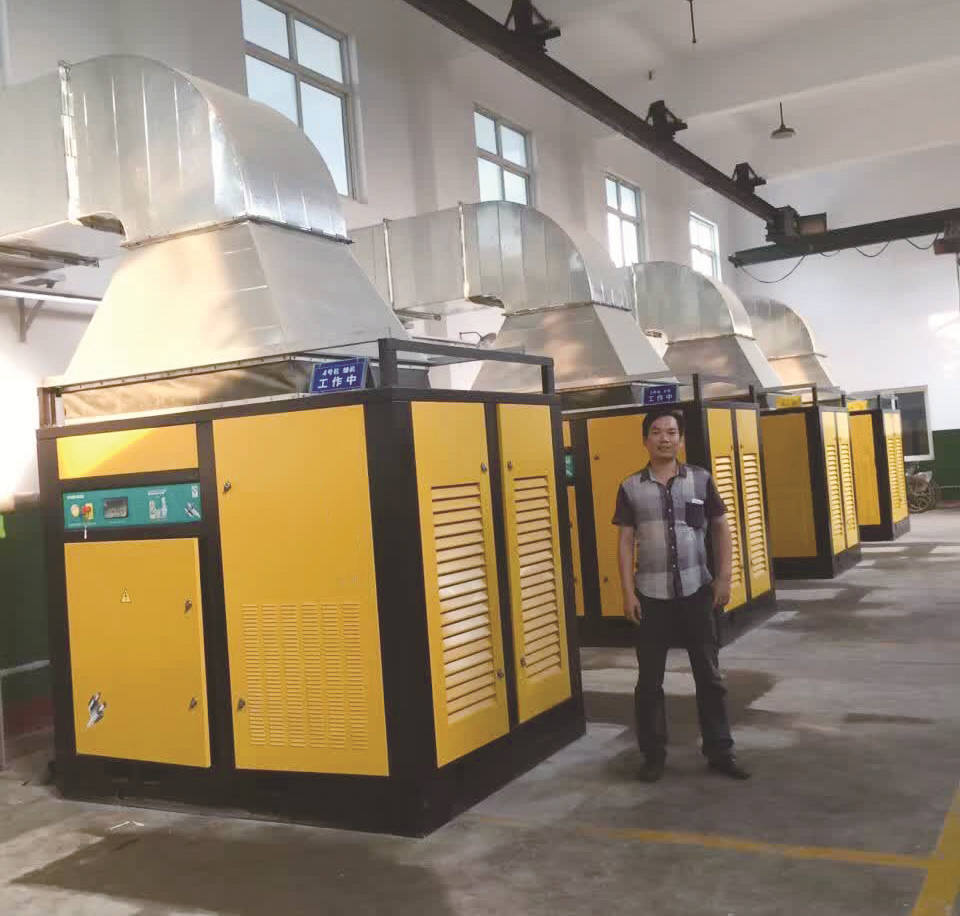

Job Site
